Basic Information

- Product Name: Wind Turbine Foundation Grout

- Chinese Name: 风电基础专用灌浆料

- Model: CGM-W

- CAS NO.: Mixture/No single CAS (High-performance cement-based wind power grouting material)



Product Overview

Wind Turbine Foundation Grout CGM-W is an ultra-high strength, high toughness, high fatigue resistance, low hydration heat special grouting material developed by GoChem for onshore and offshore wind turbine foundation grouting. It is compounded with special cementitious material, high-strength hard aggregate and high-performance additives. It features ultra-high early and late strength, excellent fatigue resistance, impact resistance and durability, can withstand dynamic loads and extreme environmental conditions during wind turbine operation, meets long-term safe operation requirements of wind turbine foundations.



Technical Specifications

| Item | Index | Test Standard |

| Appearance | Uniform gray powder | Visual |

| Maximum Aggregate Size | ≤4.75mm | GB/T 50448-2015 |

| Fluidity (Initial) | ≥320 mm | GB/T 50448-2015 |

| Fluidity (60min) | ≥280 mm | GB/T 50448-2015 |

| Vertical Expansion Rate (24h) | 0.1%-0.8% | GB/T 50448-2015 |

| Compressive Strength (1d) | ≥50 MPa | GB/T 17671-1999 |

| Compressive Strength (3d) | ≥80 MPa | GB/T 17671-1999 |

| Compressive Strength (28d) | ≥110 MPa | GB/T 17671-1999 |

| Flexural Strength (28d) | ≥15 MPa | GB/T 17671-1999 |

| Elastic Modulus (28d) | ≥35 GPa | GB/T 50081-2019 |

| Fatigue Performance (2 million cycles) | No failure | GB/T 50081-2019 |

| Frost Resistance Grade | ≥F300 | GB/T 50082-2009 |



Key Features

1. Ultra-high strength: 1-day strength ≥50MPa, 28-day strength ≥110MPa, meets high load requirements of wind turbine foundations

2. Excellent fatigue resistance: Can withstand millions of dynamic loads during 20-year operation of wind turbines without fatigue failure

3. High toughness and high elastic modulus: Elastic modulus ≥35GPa, small deformation, strong impact resistance

4. High flow and long workability: Initial fluidity ≥320mm, still ≥280mm after 1 hour, meets large volume grouting construction

5. Low hydration heat: Low hydration heat peak, avoids temperature cracks in large volume grouting

6. High durability: Freeze-thaw resistant, impermeable, sulfate resistant, adapts to various harsh environments on land and sea

7. Non-shrink micro-expansion: Ensures tight connection with foundation ring and tower flange without voids



 Applications

- Onshore wind turbine foundation ring grouting

- Offshore wind turbine foundation grouting

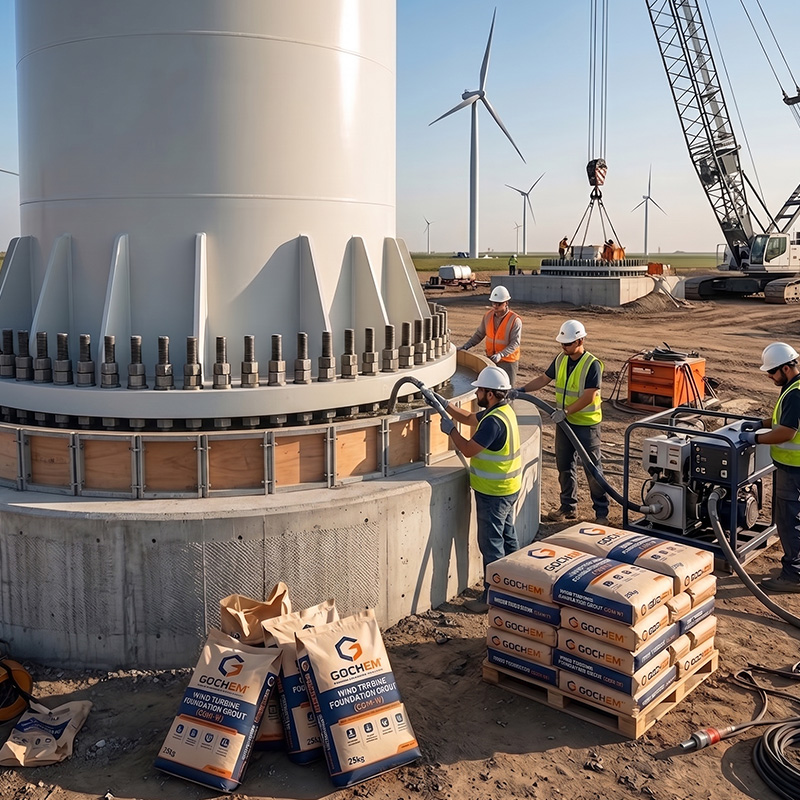

- Wind turbine tower flange and foundation connection grouting

- Offshore wind monopile, jacket foundation grouting

- Other heavy equipment foundation grouting bearing dynamic loads

- High vibration, high impact equipment foundation grouting



 Construction Notes

- Recommended water addition: 10%-12% (of dry powder weight), use forced mixer for mixing

- Roughen foundation surface and fully wet before grouting, remove standing water and debris

- Use continuous pumping or high-level funnel method for grouting, ensure continuous and dense

- Construction temperature 5-35℃, cover and cure in time after grouting, curing period not less than 14 days

- For offshore construction, arrange construction time reasonably according to tides and sea conditions



 Packaging

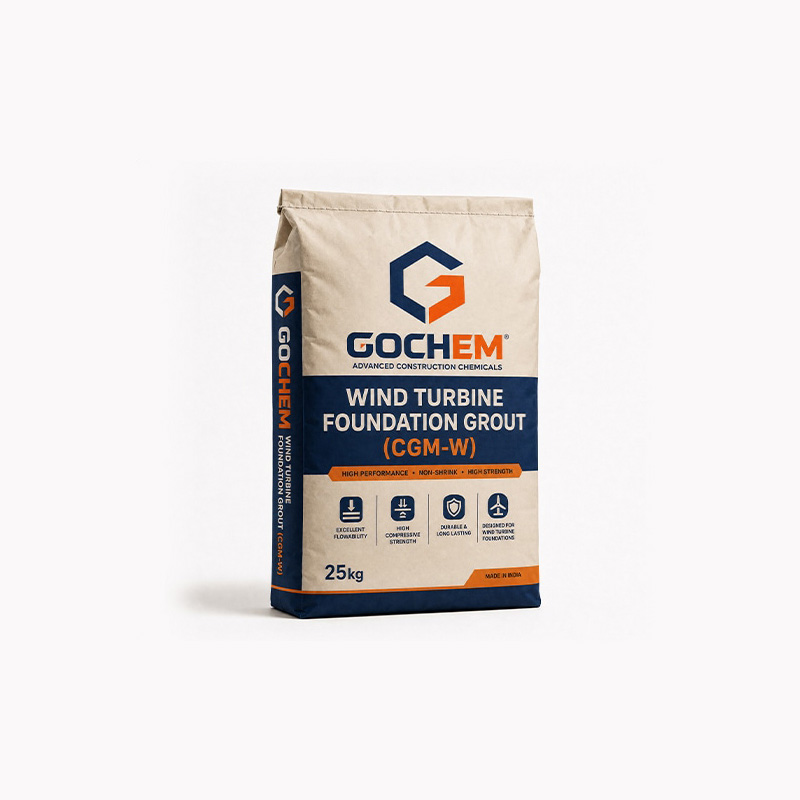

- 25kg moisture-proof kraft bag with PE liner

- 1000kg bulk bag packaging, suitable for large volume construction

- Customized packaging available according to customer requirements



Storage & Transportation

- Store in dry and ventilated warehouse, strictly moisture-proof and rain-proof, shelf life 6 months

- Prevent package damage and moisture during transportation, avoid rain

- Transport as non-dangerous goods
